NAT Configuration

Introduction: This document lists the port numbers that the device will use as a basis for port mapping.


Port No.	Function	Description
✅554	RTSP Video Stream	Video stream
☑8000	Onvif	Onvif protocol
✅8888	TVMS device control	TVMS control port
☑8089	T-JSON Control	T-JSON protocol
☑5555	Upgrade Port	Firmware upgrade
⏹23	Debug Port	Only for Debug
⏹26	Serial Server Port	Check PTZ data

✅：Mandatory
☑：Recommended
⏹：Optional

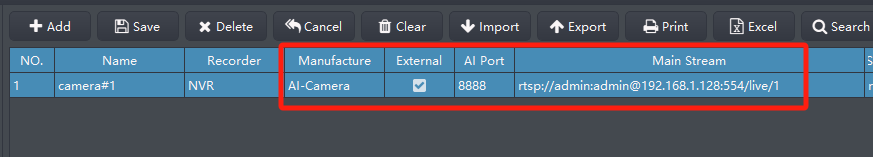

If you use TVMS software, manually add the device and change the port number and video stream address after the port mapping is completed, check the 'External' option.
