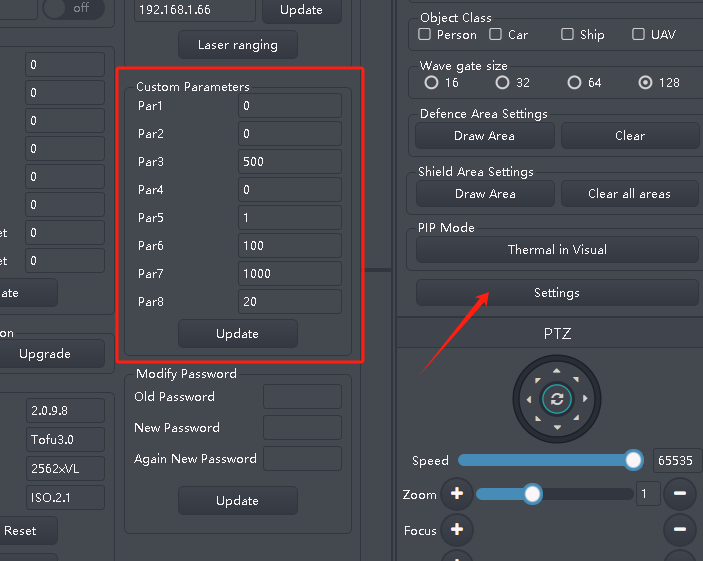

🗜️Custom Parameters Setting

🟢 ​Custom Parameter 1:​​
Set to 1 for Small Target Tracking Mode, set to 0 for Standard Tracking Mode.

🟢 ​Custom Parameter 2:​​
Minimum target pixel count for recognition. Targets with pixel counts below this value will be filtered out. Default value is 0, meaning no minimum restriction.

🟢 ​Custom Parameter 3:​​
Maximum target pixel count for recognition. Targets with pixel counts exceeding this value will be filtered out. Default value is 500, meaning targets above 500 pixels are filtered out.

🟢 ​Custom Parameter 4:​​

• ​Single Video Input Mode:​​
  Parameter 4 represents ​10 × (Horizontal Subdivision Speed / Vertical Subdivision Speed)​. Default is 10 (horizontal and vertical speeds are equal). Use only when speeds differ significantly; avoid arbitrary modification.
• ​Dual Video Input Mode:​​
  Visible light magnification factor × 10 when the fixed-focus thermal infrared and visible light share the same Field of View (FoV). E.g., if thermal FoV matches visible light at 3.2X zoom, input 32.



🟢 ​Custom Parameter 5:​​

• ​Firmware v2.0.9.8:​​
  ​param5​ > ​0: Continuous Variable Speed Servo Control Mode.
  ​param5​ = ​0: ​Pelco-D​ Protocol Tracking Mode.
• ​Firmware v2.1.3.9:​​
  ​param5​ = ​17: Continuous Variable Speed Servo Control Mode.
  ​param5​ = ​0: ​Pelco-D​ Protocol Tracking Mode.



🟢 ​Custom Parameter 6 & 7:​​
LPP protocol gimbal setting.Please see Tracking and PTZ Parameter Fine-tune Guide

🟢 ​Custom Parameter 8:​​
Recognition confidence threshold percentage. Default is 20, meaning targets with confidence scores ≥ 20% are identified. Adjust based on specific scenarios.
